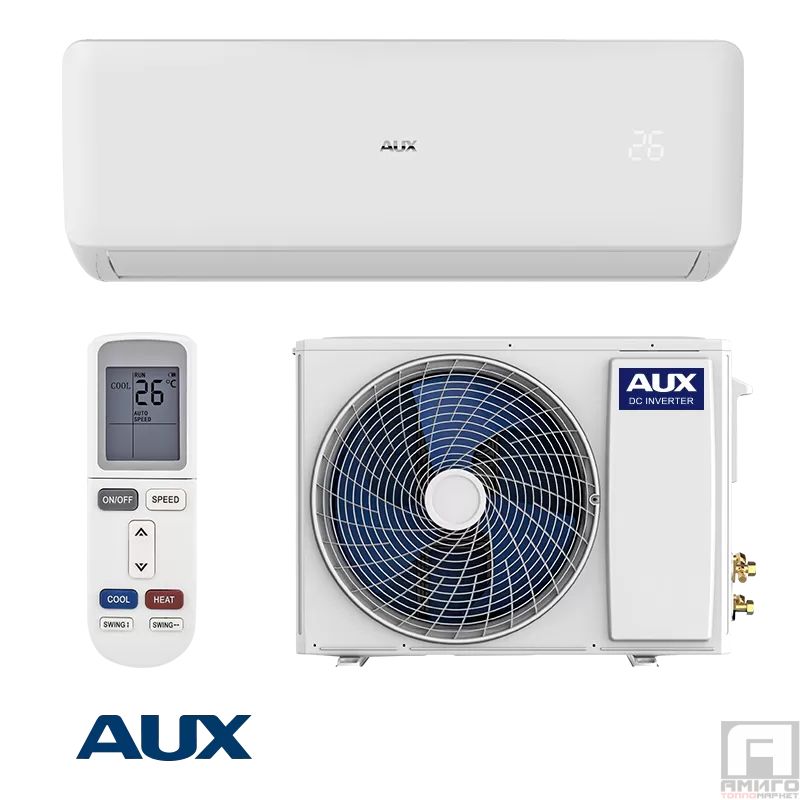

AUX Freedom ASW-H18E0A4/FAR3DI-C0,18000BTU

Technical information

• Main features
• Cooling capacity output (Min./Rated/Max):

  1.3 / 5.1 / 5.3 kW

• Heating capacity output (Min./Rated/Max):

  1.3 / 5.4 / 5.5 kW

• Cooling power input (Min./Rated/Max):

  0.28 / 1.52 / 1.7 kW

• Heating power input (Min./Rated/Max):

  0.22 / 1.4 / 1.5 kW

• Capacity (BTU):

  18 000 BTU

• SEER (seasonal energy efficiency ratio):

  6.9

• SCOP (seasonal coefficient of performance, heating):

  4

• Annual electricity consumption (Cooling / Heating):

  270 / 1220 kWh

• Energy class cooling / heating (average climate zone):

  A++ / A+

• Energy class cooling / heating (warm zone):

  A++ / A++

• Cooling operating temperature:

  -15 ~ 46 °C

• Heating operating temperature:

  -15 ~ 30 °C

• Suitable for rooms up to:

  35 sq. m

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage) :

  1~/50/220-240

• Indoor unit
• Dimensions:

  310 x 900 x 225 H x W x D (mm)

• Weight:

  11 kg

• Cooling noise level (High/Rated/Low/Silent):

  43 / - / - / - dB

• Heating noise level (High/Rated/Low/Silent):

  43 / - / - / - dB

• Outdoor unit
• Dimensions:

  537 x 715 x 280 H x W x D (mm)

• Weight:

  25 kg

• Pipe connections - liquid / gas phase:

  6.35 / 12.7 mm (1/4" / 1/2")

• Cooling noise level (High/Rated/Low/Silent):

  48 / - / - / - dB

• Heating noise level (High/Rated/Low/Silent):

  48 / - / - / - dB

• Transport packaging - AUX ASW-H18E0B4/ FAR - INDOOR UNIT
• Number of packages:

  1 pcs.

• Package size (HxWxD cm):

  31 x 39 x 97; Weight: 12 kg.;

• Transport packaging - AUX AS-H18E0B4/ FAR - OUTDOOR UNIT
• Number of packages:

  1 pcs.

• Package size (HxWxD cm):

  60 x 50 x 83; Weight: 27 kg.;
