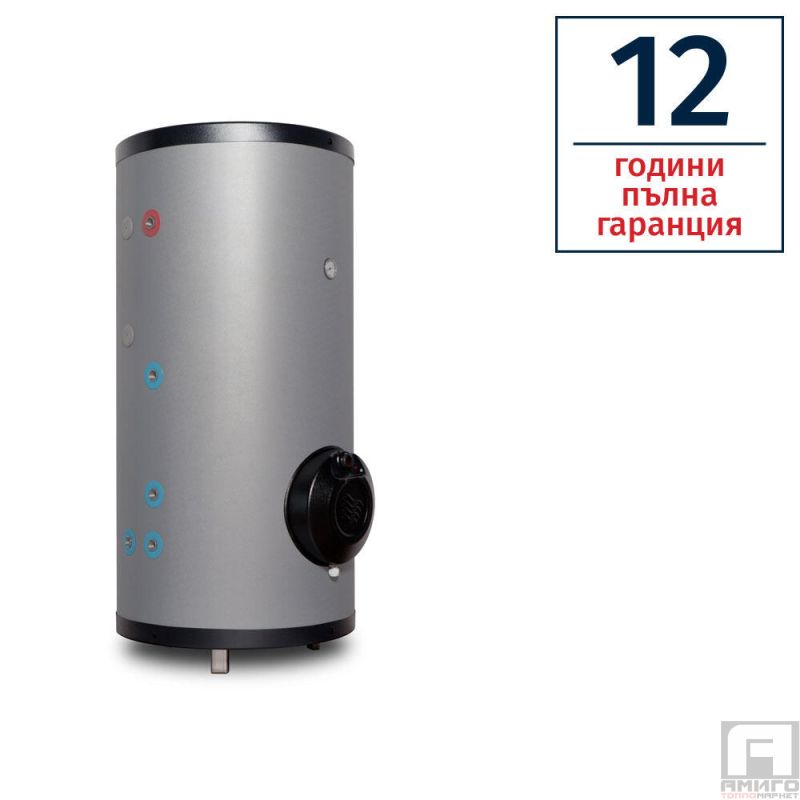

TEDAN Combi Pro Inox coil water heater 200 liters, 6 kW stainless steel

• Electric heating element specially designed for this model and made with latest-generation technology
• Tank made of high-quality alloyed stainless steel EN1.4401 and EN1.4301 with a thickness of 1.2 mm to 1.8 mm, tested at 12 Bar pressure.
• The stainless steel we use in Tedan water heaters comes from proven manufacturers and is of the highest quality
• Up to 7% more hot water thanks to correct recirculation of the water in the tank
• Temperature indicator
• The coil temperature depends on the temperature of the fluid in the system
• Stainless steel coil, connections on the left.(depending on the model)
• Additional connection for a heat exchanger sensor. Once temperature sensors are fitted in the socket, they allow precise control of the heating system and its economical operation
• Bottom-mounted coil to optimise heat exchange and limit limescale formation
• More compact dimensions, allowing passage through narrower openings.
• Recirculation inlet
• Safety valve
• Thermostat with frost protection and a maximum operating temperature of 75°C.
• Round flange of special design for higher reliability and safety of the appliance.
• Water heater protection class IP: X4
• Soft casing – grey PVC jacket
• Adjustable feet

Heat exchanger 1

Electrical part
