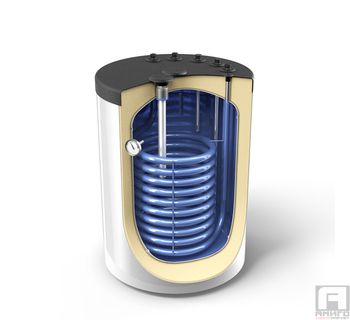

Single coil water heater Tesy 120l.
Compact overall dimensions, suitable for installation under wall-hung boilers, such as gas, electric, etc.
Conveniently arranged outlets in a semicircle above the top cover for installation under a gas boiler.
Can be operated with an additional backup electric heating element (3 kW).
High-efficiency polyurethane insulation that keeps the water hot longer and helps reduce heat losses.
Drain opening.
Powerful heat exchanger.
Energy-efficient appliance complying with European regulations (Class A for the 120 L model).
Net weight | 53 kg |
Insulation | 50 mm |
Heat exchanger surface area S1 | 1 m² |
Heat exchanger capacity S1 | 6.2 L |
Heat losses ∆T 45K | 35 W |
Energy class | A |
Maximum | 95 °C |
Maximum operating temperature of the heat exchanger | 110 °C |
Rated pressure of the tank | 8 bar |
Rated pressure of the heat exchanger | 6 bar |
Maximum quantity of mixed water delivered MIX 45°C (**15-60°C), Power off (S1) | 176 L |
Diameter | 600 mm |
-
Manufacturer:Tesy
-
Warranty:2 years
| File | Info |
|---|---|
207332_002-User-Manual-UNI-EV-120-2000-14lang-A3
|
[PDF, 4.76 MB] |


207332_002-User-Manual-UNI-EV-120-2000-14lang-A3
