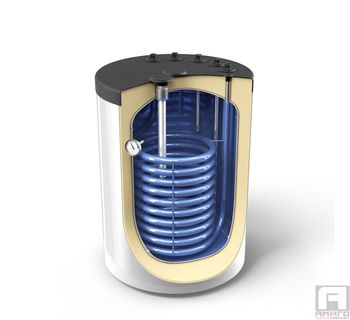

Single coil water heater Tesy 160l.

Name: Single coil water heater Tesy 160l.
Brand: Tesy
SKU: EV 15S 160 60 Z PS
Price: 792.00 EUR
Availability: InStock

Send to friend

Compare

Price: 792.00 € с ДДС

Add to wishlist

Quantity:

+ -

Compact overall dimensions, suitable for installation under wall-hung boilers, such as gas, electric, etc.
Conveniently arranged outlets in a semicircle above the top cover for installation under a gas boiler.
Can be operated with an additional backup electric heating element (3 kW).
High-efficiency polyurethane insulation that keeps the water hot longer and helps reduce heat losses.
Drain opening.
Powerful heat exchanger.

Net weight	63 kg
Insulation	50 mm
Heat exchanger surface area S1	1.52 m²
Heat exchanger capacity S1	9.5 L
Heat losses ∆T 45K	46 W
Energy class	B
Maximum operating temperature	95 °C
Maximum operating temperature of the heat exchanger	110 °C
Rated pressure of the tank	8 bar
Rated pressure of the heat exchanger	6 bar
Maximum quantity of mixed water delivered MIX 45°C (**15-60°C), Power off (S1)	231 L
Diameter	600 mm

File	Info
207332_002-User-Manual-UNI-EV-120-2000-14lang-A3	[PDF, 4.76 MB]
