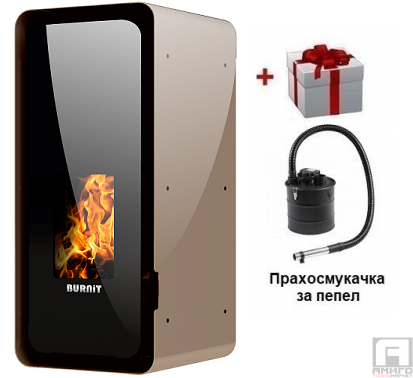

Pellet Stove BURNiT Calor V2 18kW
Price:
2,210.83 € с ДДС
-
Backup Powersupply Stil 600W
Price: 264.85 € с ДДС -
Backup Powersupply Stil 106A 100W
Price: 132.00 € с ДДС
BURNiT Calor pellet stoves impress with their rounded shapes, elegant glossy surfaces and fresh colours. The series offers full functionality and high efficiency in heating rooms up to 145 sq. m.
The model is available in two outputs and three current colour schemes in line with interior trends, so it easily finds its place in any home, office or hotel lobby.
ENERGY EFFICIENCY
- Directive 2010/30/EU, regulation 2015/1187
RECOMMENDED FUEL
- wood pellets ø 6÷8 mm EN 14961-2:2011
CONTROLLER FUNCTIONS
- Pellet feed adjustment.
- Control of a pump for the heating installation.
- Control of the operating modes of the pellet fireplace.
- Weekly programmer.
- WiFi module. Controlled via a mobile app for Android or iOS.
CONTROLLER FUNCTIONS
- Pellet feed adjustment.
- Control of a pump for the heating installation.
- Control of the operating modes of the pellet fireplace.
- Weekly programmer.
- WiFi module. Controlled via a mobile app for Android or iOS.
ELEMENTS OF THE BURNIT CALOR PELLET STOVE
- Control (controller)
- Pellet hopper lid
- Pellet hopper
- Heat-resistant glass
- Door handle
- Ash drawer
- Pellet burner
- Power supply
- Decorative side panels
- Chimney
- Air inlet pipe
- Cold water pipe
TECHNICAL SPECIFICATIONS
| CALOR 13 | CALOR 18 | ||
|---|---|---|---|
| Nominal output | kW | 13 kW | 18 kW |
| Reduced heat output | kW | 5.5 kW | 7.1 kW |
| Heat output of the water jacket | kW | 11 kW | 15.5 kW |
| Height H | mm | 1005 | 1055 |
| Width L / Depth D | mm | 475/580 | 475/580 |
| Water jacket volume | L | 13 | 20 |
| Expansion vessel volume | L | 8 | 8 |
| Maximum working pressure | bar | 2 | 2 |
| Recommended working pressure | bar | 1.2-1.3 | 1.2-1.3 |
| Supply voltage | V/Hz/W | 230/50/150 | 230/50/150 |
| Pellet hopper capacity | kg | 12 | 15 |
| Recommended fuel | wood pellets, ø 6÷8 mm /EN ISO 17225-2:2014/ | ||
| Weight | kg | 150 | 180 |
| Air inlet pipe | mm | ø57 | ø57 |
| Flue gas pipe- Chimney connection | mm | ø80 | ø80 |
| Water jacket outlet | Connector 1” | Connector 1” | |
| Water jacket inlet | Connector 1” | Connector 1” | |
| Flue gas temperature | 0C | <180 | <180 |
| Average fuel consumption per hour | kg/h | 1.5 | 1.8 |
| Burning time of a full hopper pellets at maximum output | h | 8 | 10 |
| CO content in the flue gas, calculated at13% O2 at nominal heat output | h/kg | 0.02% | 0.02% |
| Efficiency | % | 87.5 | 89 |
-
Manufacturer:BURNiT
-
Jacket type:with water jacket
-
Power of the body:2.5 kW
-
Power of water jacket:15.5 kW
-
Diameter of the flue:80 mm
-
Width:475 mm
-
Depth:580 mm
-
Warranty:2 years
-
High:1055 mm
