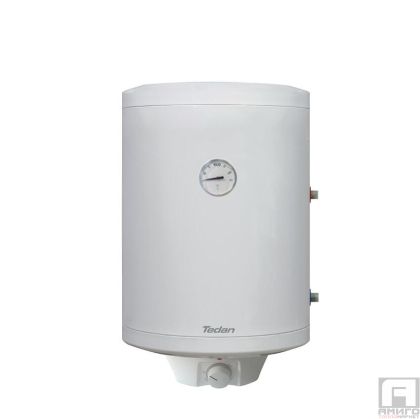

Water Heater with single coil Tedan Comby MB 80L inox 3kW
Price:
489.99 € с ДДС
- Tank made of high-quality alloyed stainless steel EN1.4401 and EN1.4301 with a thickness of 1.2 mm to 1.8 mm, tested at 12 Bar pressure.
- The stainless steel we use in Tedan water heaters comes from proven manufacturers and is of the highest quality.
- The coil temperature depends on the temperature of the fluid in the system
- Stainless steel coil, connections on the left.
- Additional connection for a sensor
- Coil operating pressure : 6 bar.
- Output at coil inlet temp. 90°C/m2 – 18 KW, flow rate at coil inlet temp. 90°C/m2 - water heater temperature 45°C - 431l/h.
- High-density thermal insulation of CFC-free polyurethane foam with a thickness of 25 to 49 mm (made by Bayer - Germany) for additional electricity savings (free of chlorofluorocarbons).
- Thermostat with frost protection (made by Thermowatt – Italy) with a maximum operating temperature of 65°C.
- Magnesium anode with up to 50% longer life, which is also removable and replaceable.
- Elliptical flange of special design for higher reliability and safety of the appliance.
- Water heater protection class IP: X4.
- Pipe diameter (plumbing): 1/2".
- Distance between the mounting plate holes (mm): 140-340
| installation | vertical | |
| volume | L | 80 |
| tank material | stainless steel | |
| heating element electrical power | W | 3000 |
| number of mounting plates | 1 | |
| operating voltage | V | 230 |
| maximum operating pressure | bar | 6 |
| water supply connection | ” | 1/2 |
| coil connections | ” | 1/2 |
| coil surface area | m2 | 0.3 |
| insulation type | CFC-free polyurethane foam | |
| insulation thickness | mm | 25-49 |
| number of thermostats | 2 | |
| pressure regulator | yes | |
| operation indicator | yes | |
| protection | IP | IP X4 |
| frost protection | yes | |
| safety valve | yes | |
| height | cm | 81.1 |
| diameter | cm | 45.4 |
| weight (with packaging) | kg | 22.4 |
| warranty | years | 10 |
| EAN | 8600034907416 |
-
Manufacturer:Tedan
-
Warranty:10 years
| File | Info |
|---|---|
instrukcia-Praktik-SE-GH-HP48
|
[PDF, 545.44 KB] |
